DS-5/6Y(3+3)
Y-axis Turning & Milling CNC Lathe (3+3)
DS Extended Stroke Series Inclined gang tool type CNC lathe with side and end milling power head
- X-axis stroke to 1040mm
- The machine bed is cast with resin sand, and the machine bed is inclined at 45°, which makes the operation of the machine tool and chip removal more convenient.
- The transmission part of the machine tool adopts high-precision P3 ball screw of Taiwan's well-known brand HIWIN/PMI, and adopts 35-type linear guide with stronger rigidity.
- The main parts are imported from Japan and Taiwan.
- The machine tool control system adopts Taiwan bus type system to realize four-axis linkage; other CNC systems can also be configured according to customers.
- It can be equipped with 3×3 or 4×4, side milling, end milling, and end milling power head functions, which can realize turning and milling combined processing, making complex product processing easier, reducing the trouble caused by secondary processing and improving products .
If you need customized products, Contact US !
Tag list： DS-5/6Y(3+3)
Product Description
Project | Unit | DS-5Y | DS-6Y |
Max.Swing Diameter | mm | Φ500 | Φ500 |
Maxprocess length | mm | 250 | 250 |
Maxprocess diameter | mm | Φ400 | Φ400 |
Spindle nose | mm | A2-4 | A2-5 |
Spindle speed | r/min | 0-4500 (factory setting) | 0-4500 (factory setting) |
Spindle bore | mm | Φ46 | Φ56 |
Spindlemotor power | kw | 5.5 | 7.5 |
Toolinstallation | - | ER25 Live tools+gang type(Optional:Turret) | |
X/Z axis effective Travel | mm | 1040/310 | 1040/310 |
Y axis travel | mm | 210 | 210 |
Chuck size | inch | 5" | 6" |
Center height | mm | 96 | 96 |
Matching Bar feeder center height | mm | 1200 | 1200 |
X/Z axis machining Travel | mm | 1020/250 | 1020/250 |
X/Z axis repeatability | mm | ±0.005 | ±0.005 |
Square toolholder size | mm | 20×20 | 20×20 |
Roundhole toolholder size | mm | Φ20 | Φ20 |
X/Z axis motor power | kw | 2.4/2.4 | 2.4/2.4 |
Y axis motorpower up and down | kw | 1.1 | 1.1 |
Yaxis power structure |
| Side milling*4+End milling*4 | |
Max.passable bar diameter | mm | Φ35 | Φ45 |
Yaxis power head speed | r/min | 0-4000 (factory setting) (optional motor matching speed) | |
Yaxis power head motor power | kw | 3.1 | 3.1 |
X/Z axis fastmoving speed | m/min | X:26 Z:26 Y:18 (factory setting) | |
Machine Power | kw | 18.5 | 20.5 |
Net Weight | kg | 3100 | 3200 |
Machine Dimensions(L×W×H) | mm | 2400×1500×2000 | 2400×1500×2000 |
Previous Page
Next Page
Company Profile
Foshan Shunde Guoqiang Daosheng Industrial Co., Ltd. (DAS) specializes in intelligent manufacturing, developing unmanned and smart CNC equipment since 1992 to advance "Industry 4.0". With a 28,000㎡ production base and certifications including CE, ISO, SGS, and EAC, its product portfolio covers CNC lathes, automation systems, and customized solutions for high-precision industries like aerospace, automotive, and smart appliances. Recognized as a "Specialized New Enterprise", DAS integrates global high-precision testing equipment and rigorous quality control to ensure reliability. Serving over 30 countries and domestic markets, it leads the industry with superior pre-/post-sales support and customer satisfaction.
Certification
Our company obtained the EU CE Safety Certification, ISO9001:2015 Quality Management System Certification, ISO14001:2015 Environmental Management System Certification, EAC Eurasian Compliance Certification, and SGS International Certification in 2017. Additionally, our products hold multiple patented technologies, including invention patents.
Exhibition Display
We are equipped with precision processing machinery and high-precision testing equipment from top-tier domestic and international brands, backed by a comprehensive quality assurance system. Leveraging high-quality products, solid reputation, and exceptional pre- and post-sales services, we have earned widespread acclaim from numerous clients.
Frequently Asked Questions
How does DAS ensure product quality and customer satisfaction?
We integrate high-precision testing equipment, ISO-certified quality control systems, and responsive pre-/post-sales services to deliver reliable performance and build long-term client trust.
What is DAS’s market coverage, and does it offer customization?
Our products are sold across over 10 Chinese provinces (e.g., Guangdong, Shanghai) and exported to 30+ countries, including Russia, Brazil, and Vietnam. We provide fully customized CNC equipment and automation solutions.
What are DAS’s core products, and which industries do they serve?
Key products include gang-type CNC lathes, turret-type CNC lathes with tailstocks, double-spindle CNC lathes with dual Y-axis, and motor worm-specific whirlwind milling CNC lathes. They are widely used in high-precision industries such as aerospace, automotive parts, and smart appliance transmission components.
What international certifications has DAS obtained, and how do they reflect corporate capabilities?
In 2017, we achieved EU CE Safety Certification, ISO9001:2015 Quality Management System Certification, ISO14001:2015 Environmental Management System Certification, SGS International Certification, and EAC Eurasian Compliance Certification. These credentials validate our compliance with global standards and enhance our competitiveness in international markets.
What is your delivery time?
Normally, it takes 20 days for a machine. If we have stock, we can arrange the shipment as soon as we receive the payment.
Recommended Products

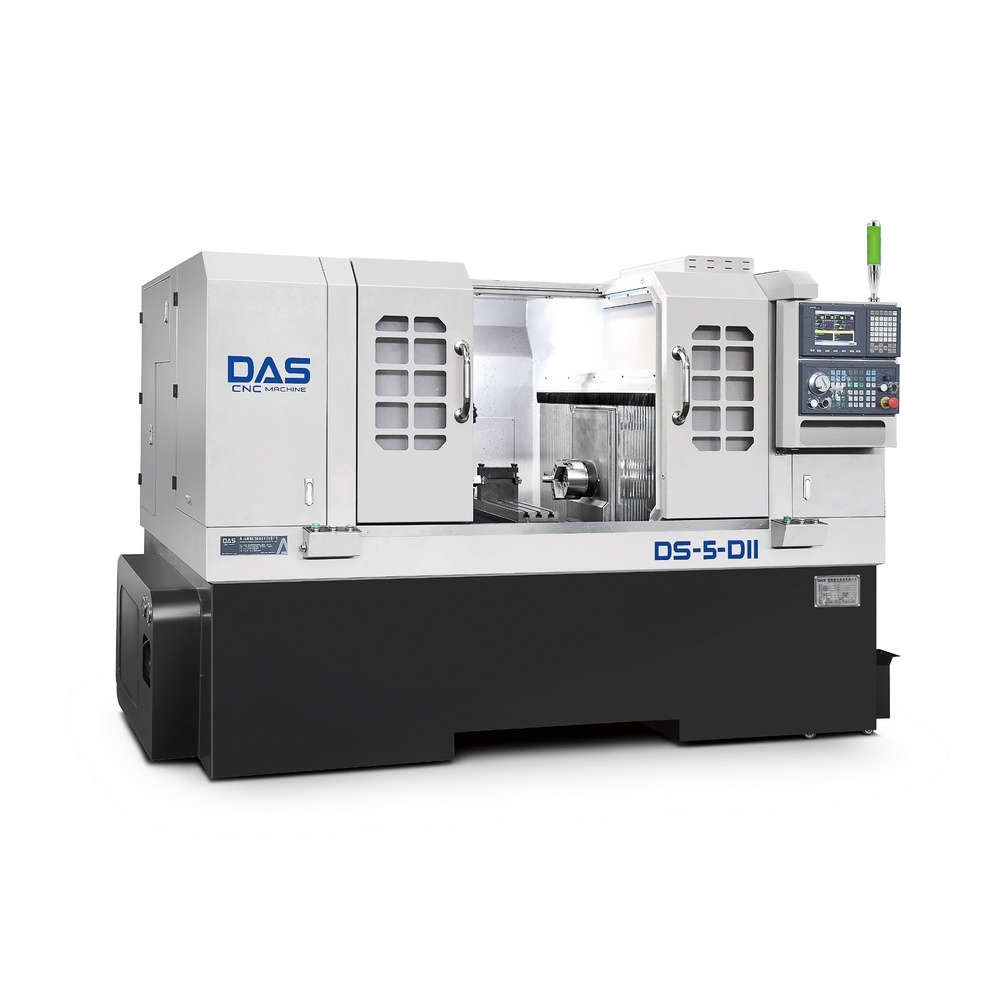

Double Spindle Gang Type CNC Lathe (Flat Bed, Tool Fixed)
The machine tool is equipped with a dual-channel control system to process two different parts (or the same parts) at the same time, such as drilling. Dual spindle processing means synchronous processing. Gang tool loading has a fast response speed.
Consulting

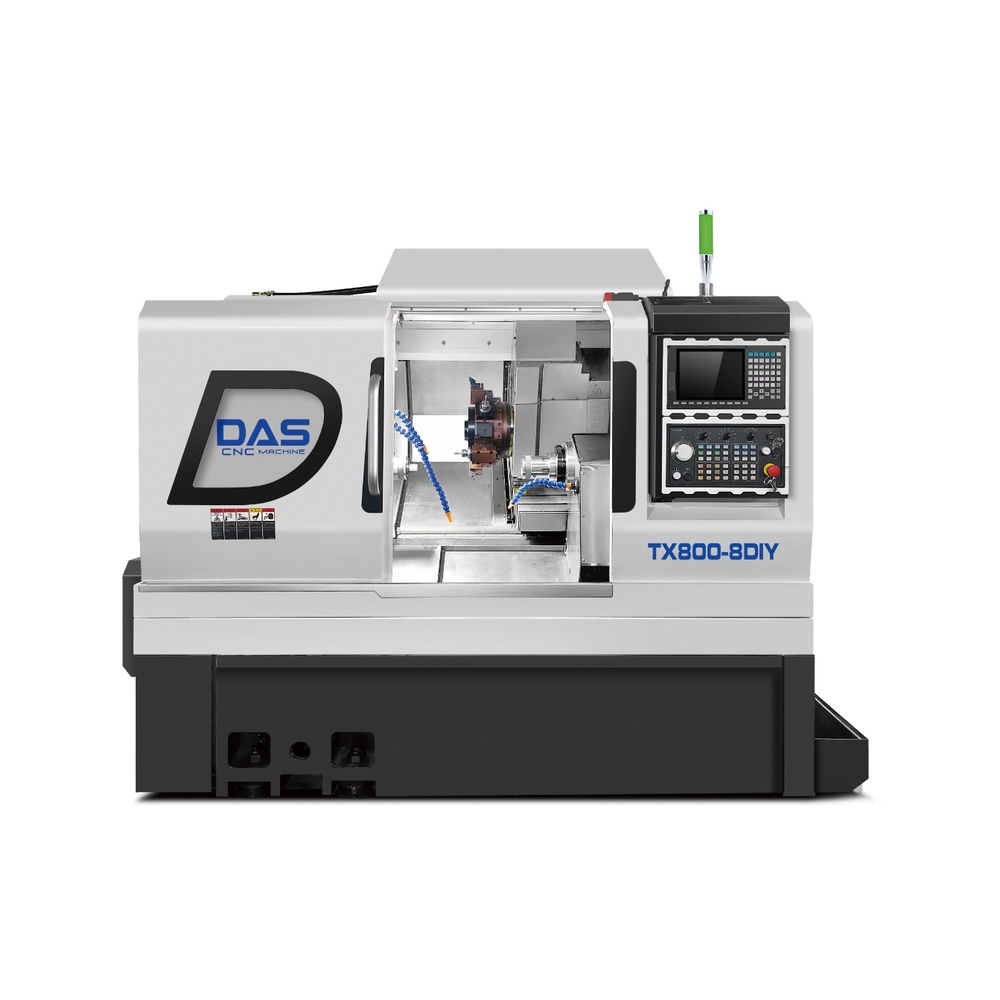

Y-axis Power Turret CNC Lathe with Programmable Tailstock
The machine tool's overall 30° inclined bed base adopts a low center of gravity and stable design, and the interior adopts a box-type reinforced rib structure design, which is rigid and stable and has high cutting force. The machine tool is developed to be equipped with a tailstock configuration or dual spindle accessories, and is standardly equipped with a high-rigidity 2-axis hard-rail Y-axis power turret or a high-speed mid-mounted motor Y-axis power turret.
Consulting
Double Spindle Power Turret with Y-axis CNC Lathe
The dual-spindle single turret Y-axis function is suitable for processing both ends at one time. It is equipped with an 8-inch main spindle and a 6-inch sub-spindle, a filtration system, a cooling system, and a drainage system. The 10-inch control system panel is easy to operate and is equipped with a handwheel manual control for higher efficiency.
Consulting

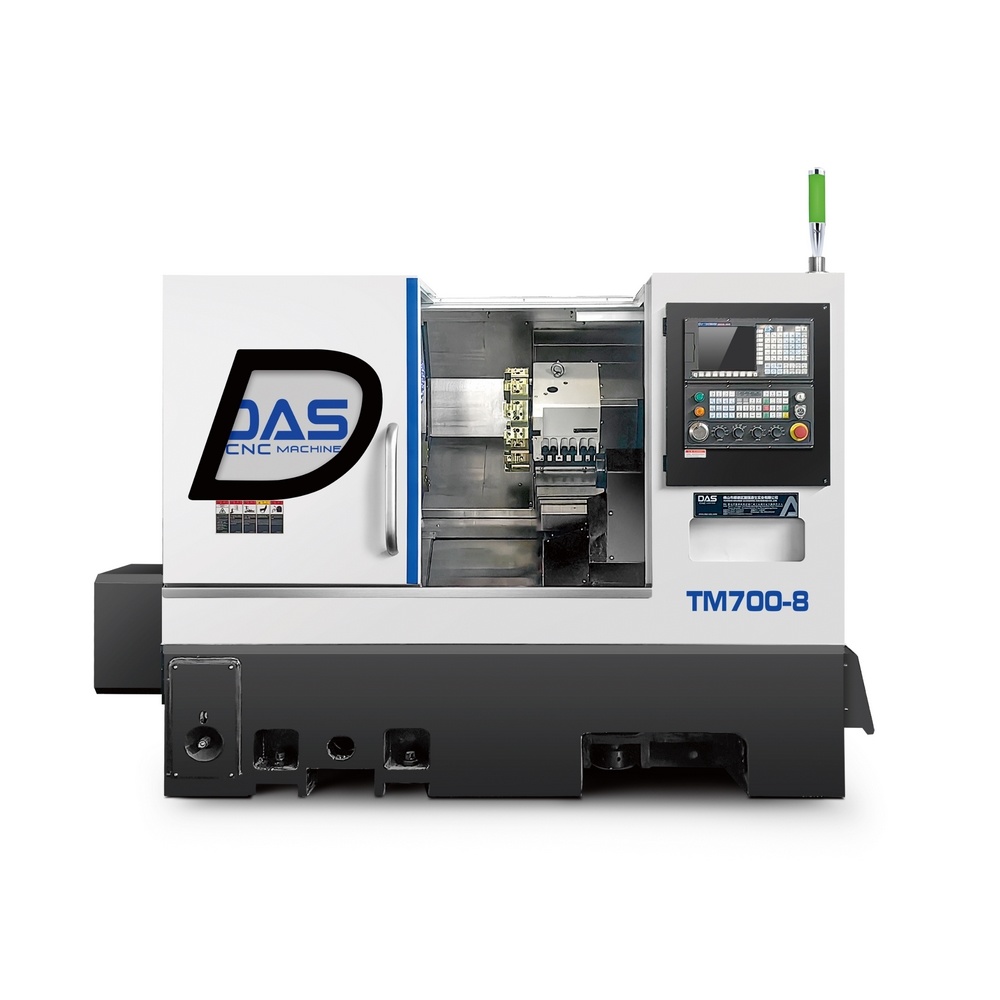

Turret (Power Turret) CNC Lathe with Programmable Tailstock
